کانکتور فایبرلاک 2529B

کانکتور فایبرلاک فیبرنوری 3M اصل آمریکا مدل: 2529

Universal Optical Fiber Splice  250 * 900

ساخت کمپانی :  3M آمریکا

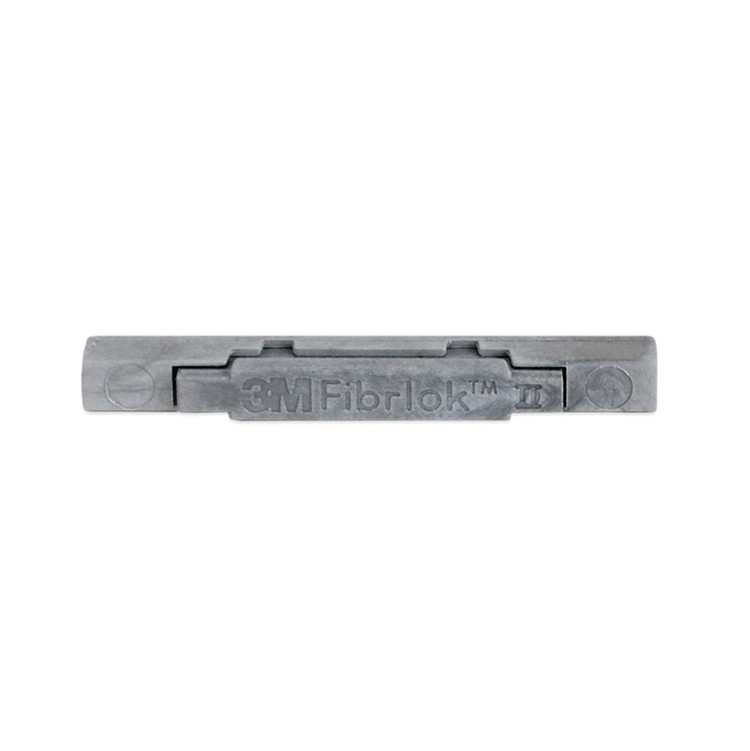

The 3M™ Fibrlok™ II 2529 Universal Optical Fiber Splice was designed for splicing any combination of 250 to 900 micron coated fibers. Mechanical splice capacity of two.

Actuation Tool: No
China RoHS – Below MCV: Yes
Cleave Type: Flat
Compatible With: BTI
EU RoHS Compliant: Yes
Fiber Construction: Singlemode / 9um
Fiber Count: 1
Fiber Diameter: 125 µm
Fiber Type: 250, 900 µm
Height: 1.50 Inch
Installation Time: 30 Second
Length: 0.15 Inch
Material: Engineering thermoplastic with aluminum alloy element & index matching gel
Mean Insertion Loss: 0.1 Decibel
Minimum Tensile Strength: 4.4 Newton
Operating Temperature Range: -40 to 80 Degree Celsius
Pigtail Connector: No
Reflection Loss: < -40 dB Typical
RUS Listed: Yes/BA
Shelf Life: 30 Year
Splice Tray Included – Model Number: No
Splice Type: Single fiber
Tensile Strength: >=1 Pound
Trademark Name 2: Fibrlok
Width: 0.25 Inch
